Fan & Cooling System
Best quality at the lowest prices! Call our representatives today to help you with any custom project!
Move and refresh the stagnant air in your greenhouse to create a healthier and more productive environment. A “fan and pad” cooling system uses exhaust fans to pull air through evaporative cooling pads and is a tool that can be used to reduce greenhouse temperatures.
Create a cooler more comfortable growing environment, which can directly contribute to productivity, quality and profitability for your greenhouse business.
Built to handle maximum floor area in high-moisture applications, Prime Grower's heavy-duty, high-performance ceiling fans are great for winter heating or summer cooling and eliminate condensation. The exhaust & circulating fans are great for plant growth. To maintain plant health during warm summer months, we recommend our circulation fans and air coolers.
Description
SE301287

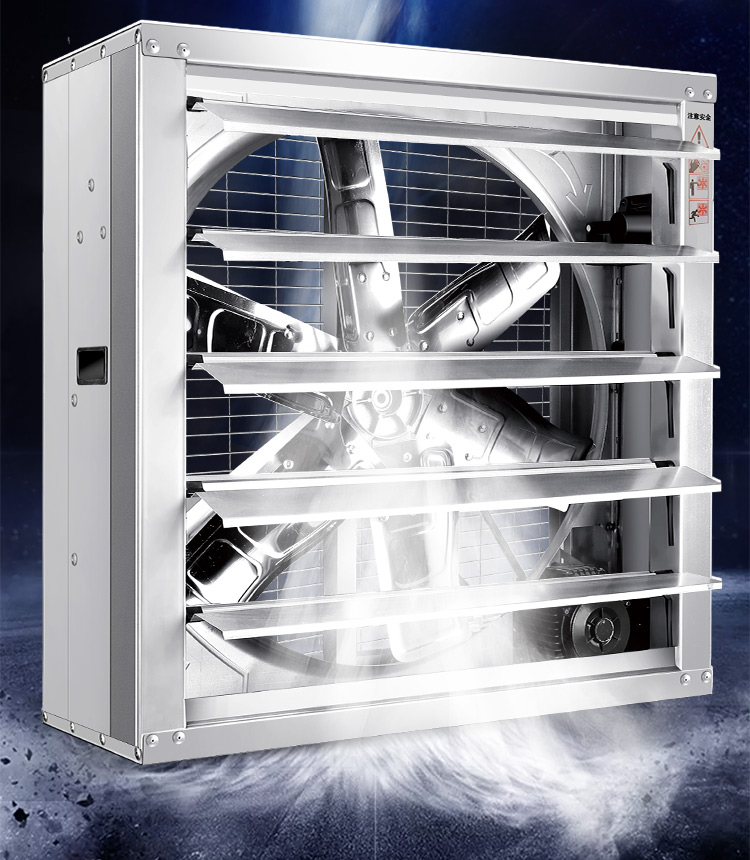

Exhaust Fan Shutter

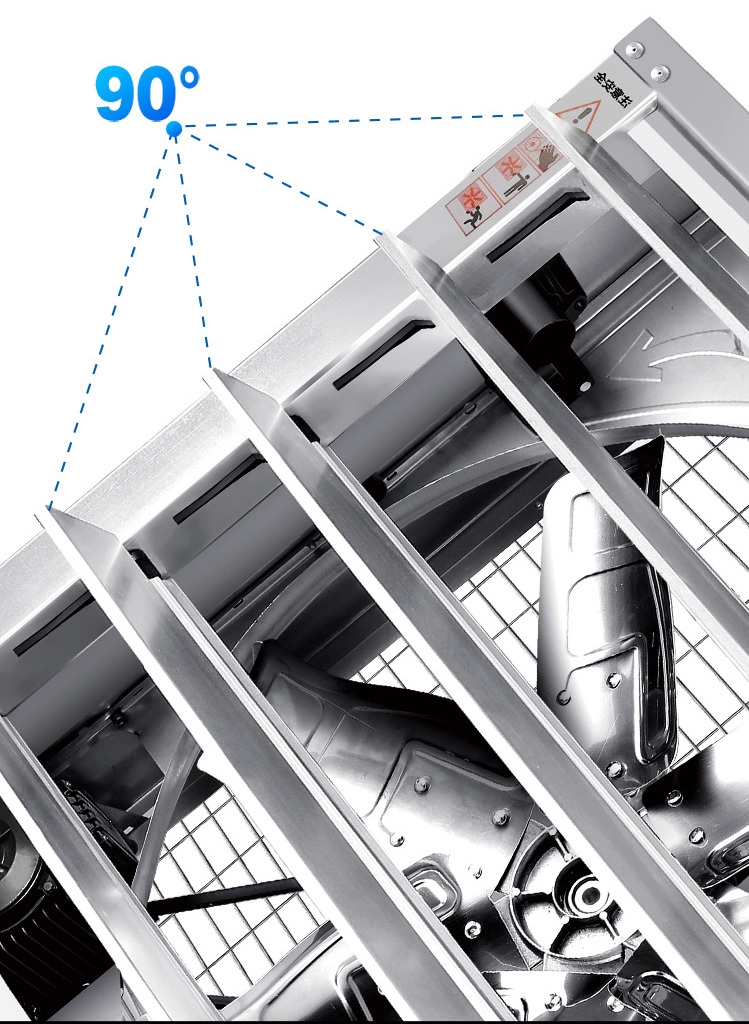

90° Fully Open Fan Louver






Model
|
Dimensions
|
Air Flow
|
Power
|
Workable Areas
|
Fan Speed
|
Noise
|
200#
|
200mmx200mmx170mm
|
588CFM
|
150W
|
5~20㎡
|
2000rpm
|
<45db
|
300#
|
300mmx300mmx200mm
|
1200CFM
|
150W
|
5~20㎡
|
2200rpm
|
<50db
|
400#
|
400mmx400mmx300mm
|
1500CFM
|
250W
|
20~40㎡
|
1400rpm
|
<55db
|
500#
|
500mmx500mmx300mm
|
3000CFM
|
250W
|
25~50㎡
|
1400rpm
|
<55db
|
600#
|
600mmx600mmx300mm
|
4700CFM
|
250W
|
50~60㎡
|
960rpm
|
<55db
|
700#
|
700mmx700mmx300mm
|
6000CFM
|
250W
|
60~70㎡
|
960rpm
|
<60db
|
800#
|
800mmx800mmx300mm
|
7650CFM
|
250W
|
70~80㎡
|
960rpm
|
<60db
|
800#
|
800mmx800mmx350mm
|
13000CFM
|
370W
|
70~80㎡
|
450rpm
|
<60db
|
900#
|
900mmx900mmx350mm
|
16000CFM
|
370W
|
80~90㎡
|
450rpm
|
<55db
|
1000#
|
1000mmx1000mmx350mm
|
17650CFM
|
550W
|
90~100㎡
|
450rpm
|
<60db
|
1060#
|
1060mmx1060mmx350mm
|
19000CFM
|
550W
|
100~120㎡
|
450rpm
|
<60db
|
1100#
|
1100mmx1100mmx350mm
|
20000CFM)
|
550W
|
110~130㎡
|
450rpm
|
<60db
|
1220#
|
1220mmx1220mmx350mm
|
22000CFM)
|
750W
|
120~140㎡
|
450rpm
|
<60db
|
1380#
|
1380mmx1380mmx350mm
|
26000CFM
|
1100W
|
140~160㎡
|
450rpm
|
<65db
|
1530#
|
1530mmx1530mmx400mm
|
32800CFM
|
1500W
|
160~200㎡
|
450rpm
|
<70db
|
1750#
|
1750mmx1750mmx450mm
|
40000CFM
|
1800W
|
180~220㎡
|
350rpm
|
<70db
|

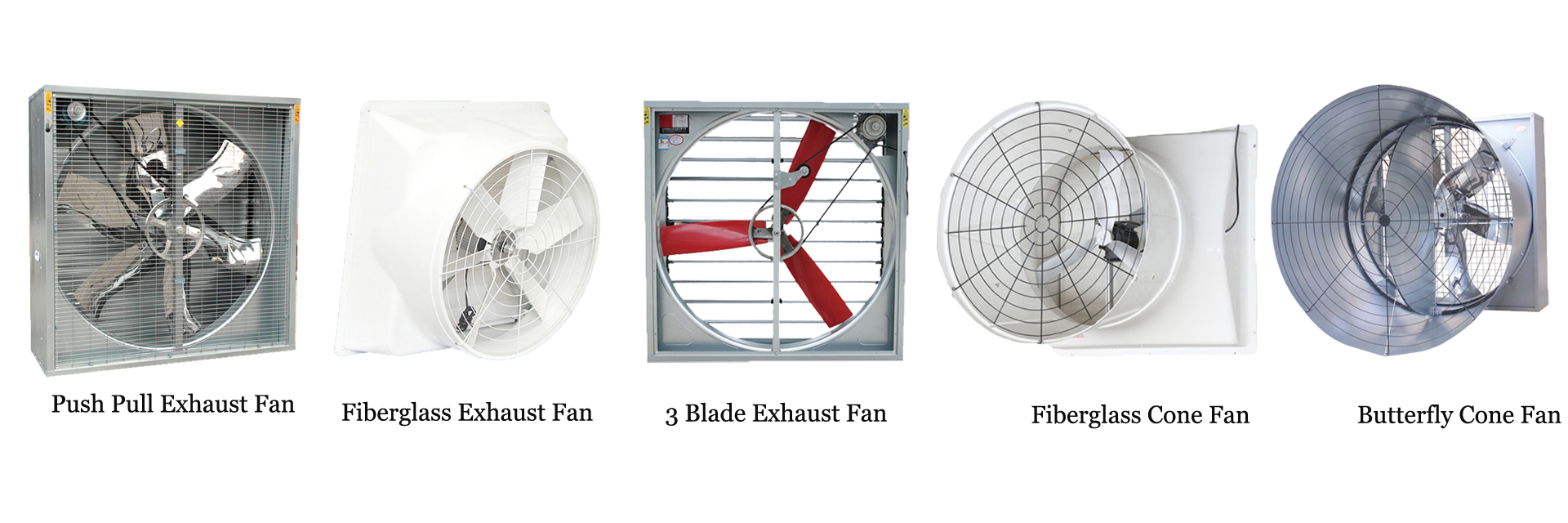

About 36 Inch 50 Inch 54 Inch 60 Inch Greenhouse Ventilation Axial Exhaust Fan Wall Mounted AC Extractor Fan with Siemens Motor
✮Cut Cooling Costs: Reduce expensive cooling bills. Ready to install, our greenhouse industrial ventilation exhaust fan is
designed to help remove excess heat and moisture keeps your living space cooler and more comfortable year-round.

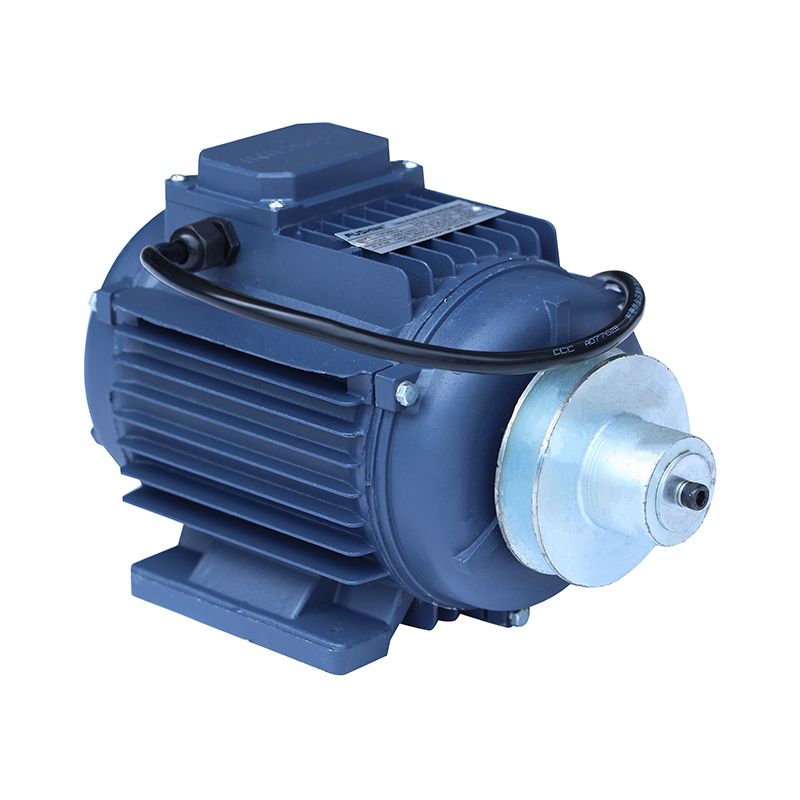

✬ Multipurpose: Perfect cooling and ventilation solution for any space at your project - including the greenhouse , attic, garage, poultry, factory, farm, warehouse, and more. the fully enclosed motor is thermally protected and permanently lubricated for easy maintenance.

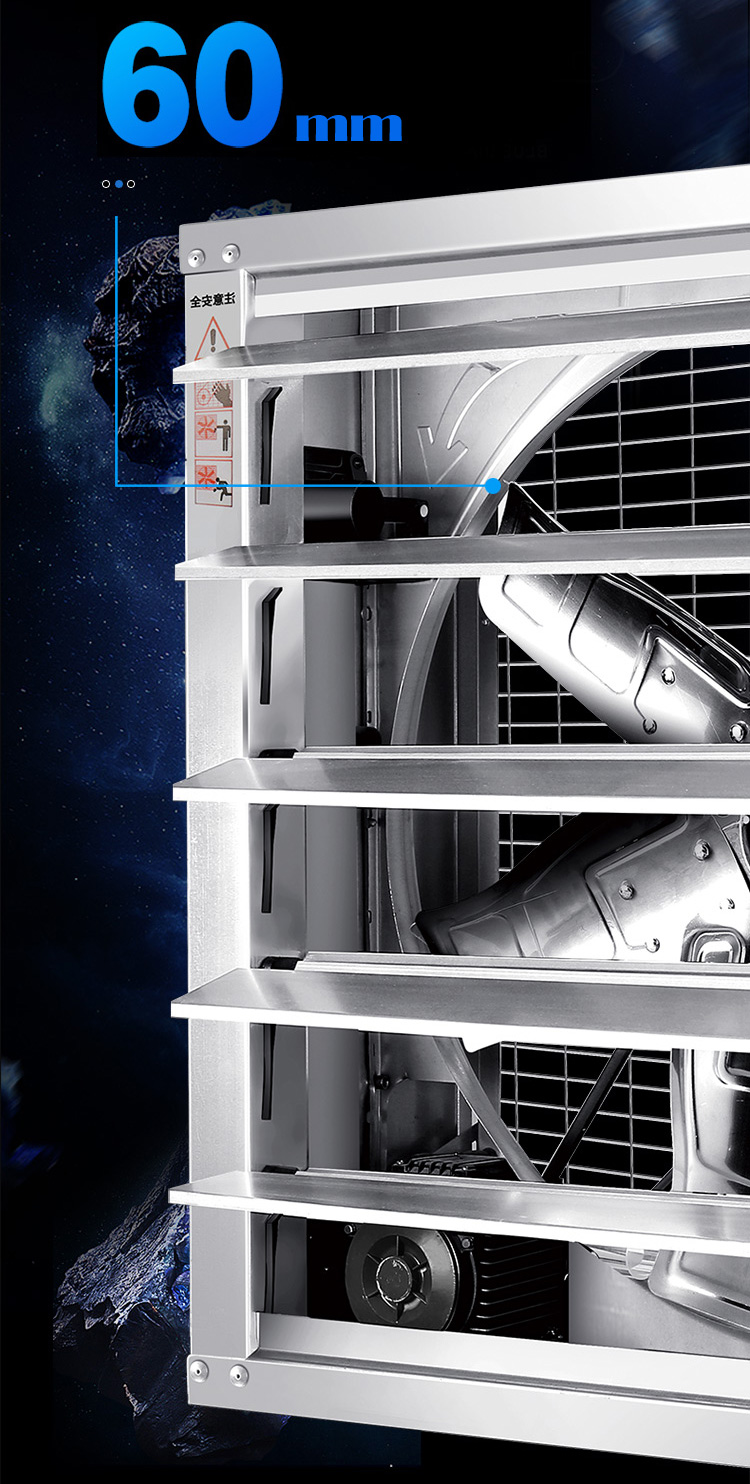

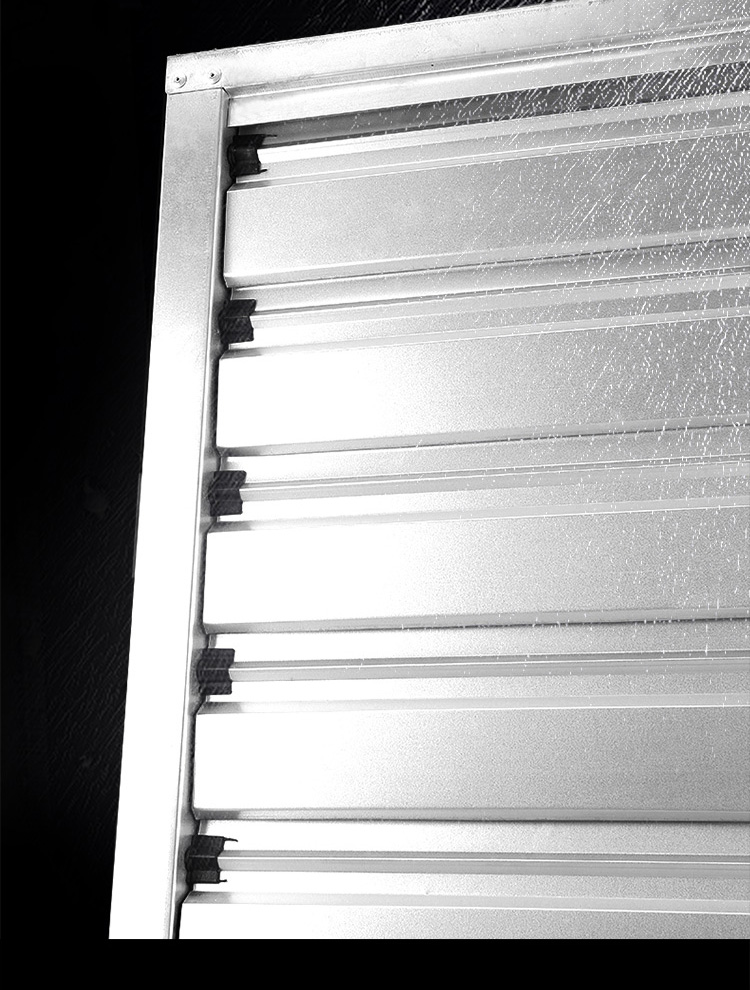

✭ Water Resistant Shutters: These shutters are made of durable galvanized steel or stainless steel, which prevents the formation of rust, thereby adding the life of the fan.
✮ Powerful And Efficient: Small but mighty, you’ll enjoy the power and efficiency of our Shutter Exhaust Fan. The 50-inch runs on standard 220 volts at 1/4 HP, 2.7 amps with 1400 rotations per minute, cooling and ventilating an area of 44500 cubic feet per minute!
✮ Exhaust Fan Warranty: The housing is made of galvanized steel which prevents rust. This heavy duty exhaust fan has 1 year limited warranty. The shutters open and close automatically.

Light Trap
Light traps are a crucial feature of any light deprivation greenhouse system. They are placed over any ventilation opening in the greenhouse structure in order to block light without sacrificing the efficiency of the fans they cover. Light traps should match the size of the fan with which they are used.
